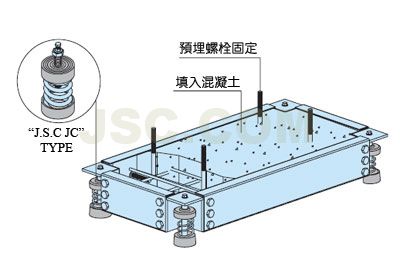

CE型防震基座 |
|
主要用途 |
|
泵浦防振 |
|
|
|
表面处理 |
|
热浸镀锌 |
|
|
|
|
|
|
产品荷重/尺寸表 |
|
规 格 |
适用泵浦 |

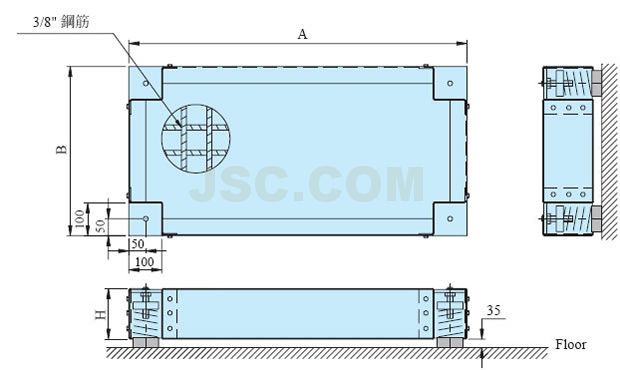

尺寸(mm)
|
避振器规格 |
避震器数量 |
A |
B |
H |
CE-100 |
1-3 HP |
600 |
450 |
150 |
JC-100 |
4 |
CE-160 |
5-10 HP |
900 |
500 |
150 |
JC-150 |
4 |
CE-180 |
15-20 HP |
1000 |
600 |
150 |
JC-200 |
4 |
CE-190 |
|
1000 |
700 |
150 |
JC-200 |
4 |
CE-200 |
*1-7.5 HP |
1200 |
450 |
150 |
JC-200 |
4 |
CE-250 |
|
1200 |
500 |
150 |
JC-200 |
4 |
CE-300 |
*10 HP |
1200 |
600 |
150 |
JC-250 |
4 |
CE-350 |
25-30 HP |
1200 |
700 |
150 |
JC-250 |
4 |
CE-370 |
25-30 HP |
1200 |
1000 |
150 |
JC-400 |
4 |
CE-400 |
40~60 HP |
1350 |
750 |
150 |
JC-400 |
4 |
CE-450 |
15-20 HP |
1500 |
600 |
150 |
JC-300 |
4 |
CE-470 |
|
1600 |
700 |
150 |
JC-400 |
4 |
CE-500 |
75-100 HP |
1500 |
900 |
150 |
JC-600 |
4 |
CE-520 |
|
1600 |
900 |
150 |
JC-600 |
4 |
CE-530 |
|
1600 |
1000 |
150 |
JC-600 |
4 |
CE-550 |
|
1700 |
600 |
150 |
JC-600 |
4 |
CE-570 |
|
1700 |
800 |
150 |
JC-600 |
4 |
CE-600 |
*25-60 HP |
1800 |
750 |
150 |
JC-600 |
4 |
CE-650 |
|
1800 |
900 |
150 |
JC-850 |
4 |
CE-700 |
|
1800 |
1000 |
150 |
JC-850 |
4 |
CE-800 |
|
1800 |
1200 |
150 |
JC-1000 |
4 |
CE-820 |
|
2000 |
750 |
150 |
JC-1000 |
4 |
CE-850 |
|
2000 |
900 |
150 |
JC-1000 |
4 |
CE-900 |
|
2000 |
1000 |
150 |
JC-1000 |
4 |
|
CE-950 |
|
2200 |
1000 |
150 |
JC-600 |
6 |
CE-1000 |
|
2200 |
1200 |
150 |
JC-850 |
6 |
CE-1100 |
|
2200 |
1350 |
150 |
JC-850 |
6 |
CE-1150 |
|
2200 |
1500 |
150 |
JC-850 |
6 |
CE-1160 |
|
2500 |
1000 |
150 |
JC-1000 |
6 |
CE-1170 |
|
2500 |
1200 |
150 |
JC-1000 |
6 |
CE-1200 |
|
2500 |
1800 |
150 |
JC-1000 |
6 |
|
CE-5100 |
15-20 HP |
1500 |
750 |
200 |
JC-450 |
4 |
CE-5150 |
|
1500 |
900 |
200 |
JC-600 |
4 |
CE-5200 |
75-100 HP |
1800 |
900 |
200 |
JC-600 |
4 |
CE-5250 |
*25-60 HP |
2000 |
750 |
200 |
JC-600 |
4 |
CE-5300 |
|
2000 |
1000 |
200 |
JC-750 |
4 |
CE-5350 |
|
2200 |
1000 |
200 |
JC-750 |
4 |
CE-5400 |
|
2200 |
1200 |
200 |
JC-1000 |
4 |
|
CE-5450 |
|
2500 |
1000 |
200 |
JC-750 |
6 |
CE-5500 |
|
2500 |
1200 |
200 |
JC-750 |
6 |
CE-5550 |
|
2700 |
1000 |
200 |
JC-750 |
6 |
CE-5600 |
|
2700 |
1200 |
200 |
JC-750 |
6 |
CE-5650 |
|
2700 |
1500 |
200 |
JC-1000 |
6 |
CE-5700 |
|
2900 |
1000 |
200 |
JC-750 |
6 |
CE-5750 |
|
2900 |
1200 |
200 |
JC-850 |
6 |
CE-5800 |
|
2900 |
1500 |
200 |
JCD-2-1200 |
6 |
CE-5850 |
|
3100 |
1200 |
200 |
JCD-2-1200 |
6 |
CE-5900 |
|
3100 |
1500 |
200 |
JCD-2-1400 |
6 |
CE-5950 |
|
3100 |
1800 |
200 |
JCD-2-1400 |
6 |
|
|
|
|
|
