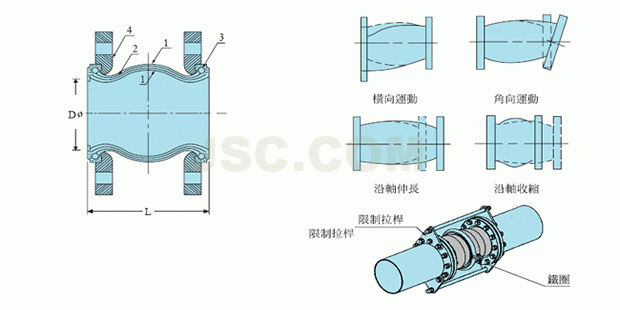

| 橡胶软管 |
 |
| No. |
品名 |
材质 |
| 1 |
本体 |
合成橡胶 |
| 2 |
补强层 |
尼龙绳 |
| 3 |
铁圈 |
碳钢丝 |
| 4 |
法兰,镀锌 |
软钢/ 球状铸铁 |
|
|
| 产品荷重/尺寸表 |
| |
| 品 名 |
 |
| 单球法兰式软管 |
|
 |
| 双球法兰式软管 |
|
 |
| 双球由任式软管 |
|
| 规 格 TYPE |
尺 寸 (mm) |
尺 寸 (mm) |
尺 寸 (mm) |
φD
mm |
L
mm |
沿轴
伸长
mm |
沿轴
收缩
mm |
φD
mm |
L
mm |
沿轴
伸长
mm |
沿轴
收缩
mm |
φD
mm |
L
mm |
沿轴
伸长
mm |
沿轴
收缩 |
| 1/2" |
|
15 |
203 |
22 |
6 |
| 3/4" |
|
20 |
185 |
22 |
6 |
| 1" |
25 |
95 |
8 |
4 |
|
25 |
180 |
22 |
6 |
| 1-1/4" |
40 |
95 |
8 |
4 |
|
32 |
190 |
22 |
6 |
| 1-1/2" |
40 |
95 |
8 |
4 |
40 |
175 |
50 |
30 |
40 |
185 |
22 |
6 |
| 2" |
52 |
105 |
8 |
5 |
52 |
175 |
50 |
30 |
50 |
175 |
22 |
6 |
| 2-1/2" |
68 |
115 |
12 |
6 |
68 |
175 |
50 |
30 |
65 |
225 |
22 |
6 |
| 3" |
76 |
130 |
12 |
6 |
76 |
175 |
50 |
30 |
80 |
225 |
22 |
6 |
| 4" |
103 |
135 |
18 |
10 |
103 |
225 |
50 |
35 |
|
| 5" |
128 |
170 |
18 |
10 |
128 |
225 |
50 |
35 |
|
| 6" |
152 |
180 |
18 |
10 |
152 |
225 |
50 |
35 |
|
| 8" |
194 |
205 |
25 |
14 |
194 |
325 |
50 |
35 |
|
| 10" |
250 |
240 |
25 |
14 |
250 |
325 |
60 |
35 |
|
| 12" |
300 |
260 |
25 |
14 |
300 |
325 |
60 |
35 |
|
| 14" |
320 |
265 |
25 |
16 |
320 |
350 |
40 |
30 |
|
| 16" |
372 |
265 |
25 |
16 |
372 |
350 |
40 |
30 |
|
| 18" |
415 |
265 |
25 |
16 |
415 |
350 |
40 |
30 |
|
| 20" |
454 |
265 |
25 |
16 |
454 |
350 |
40 |
30 |
|
| 24" |
580 |
254 |
19 |
13 |
580 |
350 |
40 |
30 |
|
| 最大工作压力 |
10 kg/cm^2 |
| 最大工作温度 |
-20℃~104℃ |
-20 ℃ ~ 104 ℃ |
-20 ℃ ~ 115 ℃ |
| 真空额定值 |
400 mm Hg |
400 mm Hg |
405 mm Hg |
| 角向运动 |
15° |
15°~25° |
10°~30° |
|
| |
|
|
| |
