| SA Air Mount |
 |
| |
| Feature |
| |
|
 |
Air-cushioned isolation. |
|
Low natural frequency (3~5 Hz at operating load) . |
|
High deflection. |
|
Neoprene padded top and bottom base. |
|
Heavy wall construction. |
|
Maintenance free. |
|
Extends machinery life. |
|
Combined resiliency and air prevents high static deflection. |
|
Wide load range available. |
|
Patent No. 149934 |
| |
|
|
|
| Applicaions |
|
| |
|
|
Air compressors、CMM machinery、Forging hammers |
| |
、Industrial equipment、tools and machinery、 |
| |
Sensitive measuring equipment |
| |
|
|
|
 |
| |
| |

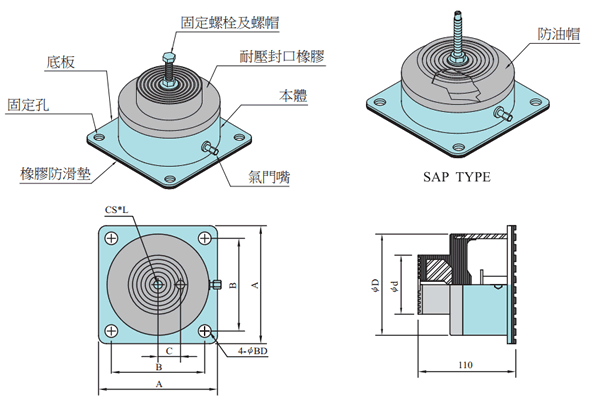

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimension (mm) |
Load Range (Kgs) |
Mounting
Bolt
CS*L |
| A |
B |
C |
øD |
ød |
BD |
Min |
Max |
| JSC-100-SA |
125 |
100 |
0 |
100 |
50 |
12 |
50 |
100 |
M10-40L |
| JSC-200-SA |
125 |
100 |
0 |
100 |
60 |
12 |
100 |
200 |
M12-50L |
| JSC-400-SA |
160 |
125 |
0 |
138 |
90 |
12 |
200 |
400 |
M12-50L |
| JSC-700-SA |
200 |
160 |
0 |
164 |
110 |
12 |
400 |
700 |
M12-50L |
| JSC-900-SA |
220 |
180 |
0 |
191 |
132 |
14 |
700 |
900 |
M16-60L |
| JSC-1200-SA |
250 |
200 |
0 |
212 |
150 |
14 |
900 |
1200 |
M16-60L |
| JSC-1600-SA |
300 |
250 |
0 |
263 |
190 |
14 |
1200 |
1600 |
M16-60L |
| JSC-2000-SA |
350 |
300 |
0 |
314 |
240 |
14 |
1600 |
2000 |
M16-60L |
| JSC-2800-SA |
400 |
350 |
90 |
353 |
270 |
16 |
2000 |
2800 |
M20-100L |
| JSC-3500-SA |
500 |
450 |
90 |
412 |
330 |
16 |
2800 |
3500 |
M20-100L |
|
| |
