JN Rubber Mount JN產品圖

Feature

Wide-range load with low natural frequency.
Resist oil, ozone and caustic materials.
Rugged construction.
Effective vibration isolation .
Quick and easy installation.
Noise attenuation.
Durable.
Maintenance free.

Applicaions JN尺寸圖

Ruggedized installations
Industrial machinery
Generators
Blowers, pumps, and
  compressors
Condensers

JN型橡膠式避震器目錄下載 JN型橡膠式避震器目錄下載處
JN型橡膠式避震器目錄下載 JN型橡膠式避震器目錄下載處

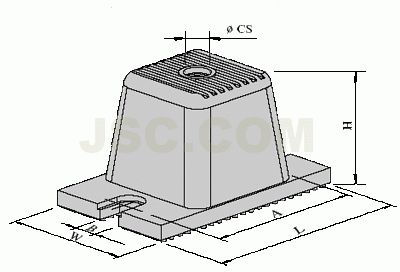

   Dimensions/Rated Capacity

Part Number Dimension (mm) Load Range(Kg)
L W H φCS A B Min Max
JN-100 95 53 48 M10 77 10 50 150
JN-130 127 77 70 M12 101 14 150 450
JN-180 180 118 70 M16 149 14 450 1000
