JC Spring Mount

Feature


	Mainly used with an inertial base as an open-type spring
	mount.
	Easy to install, allows easy inspection since the spring.
	Deflection can be visually checked.
	With a spring deflection of 25mm~75mm.
	Used for equipment that needs maximum isolation.
	Quick and easy installation
	Heavy-duty vibration isolation

Applicaions

Air blowers

Pumps

Compressors

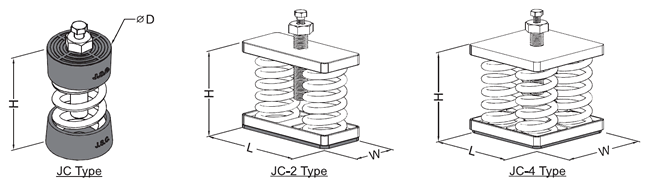

Type	Dimensions(mm)
Type	H	φD	Bolt
JC-C	150	86	M12
JC-A	160	86	M12
JC-D	170	100	M12
JC-S	230	126	M16

Type	Dimensions(mm)
Type	L	W	H	Bolt
JC-2C	186	81	140	M12
JC-2A	186	81	150	M12
JC-2D	220	100	178	M12
JC-2S	260	120	220	M16

Type	Dimensions(mm)
Type	L	W	H	Bolt
JC-4C	160	160	140	M12
JC-4A	160	160	150	M12
JC-4D	195	195	178	M12
JC-4S	230	230	220	M16

Dimensions/Rated Capacity

Part Number	Rated Capacity Kgs	Spring Rate Kg/mm	Rated Defl. mm	Color Code
JC-100-C	90~110	4.0	25	Yellow
JC-150-C	110~150	6.0	25	White
JC-200-C	150~200	8.0	25	Drak Green
JC-250-C	200~250	10.0	25	Red
JC-300-C	250~300	12.0	25	Blue
JC-400-C	350~400	16.0	25	Brown
JC-500-C	450~520	20.0	25	Red
JC-600-C	520~620	24.0	25	Gray
JC-700-C	620~700	28.0	25	Yellow
JC-850-C	700~860	34.0	25	Khaki
JC-1000-C	860~1000	40.0	25	Drak Green
JC-2-1000	900~1040	40.0	25	Red
JC-2-1200	1040~1240	48.0	25	Gray
JC-2-1400	1240~1400	56.0	25	Yellow
JC-2-1600	1400~1720	68.0	25	Khaki
JC-2-2000	1720~2000	80.0	25	Drak Green
JC-2-2400	2000~2500	96.0	25	Blue
JC-4-1600	1400~1600	64.0	25	Brown
JC-4-2000	1800~2080	80.0	25	Red
JC-4-2400	2080~2480	96.0	25	Gray
JC-4-2800	2480~2800	112.0	25	Yellow
JC-4-3200	2800~3440	136.0	25	Khaki
JC-4-4000	3440~4000	160.0	25	Drak Green
JC-4-4800	4000~5000	192.0	25	Blue

JC-150-A	130~160	3.8	40	Blue
JC-200-A	160~210	5.2	40	Brown
JC-350-A	300~390	9.0	40	Gray
JC-450-A	390~500	12.6	40	Red
JC-650-A	500~650	15.5	40	Green
JC-850-A	650~850	21.3	40	Drak Green
JC-1000-A	850~1030	25.6	40	Yellow
JC-2-700A	600~780	18.0	40	Gray
JC-2-900A	780~1000	25.2	40	Red
JC-2-1300A	1000~1300	31.0	40	Green
JC-2-1700A	1300~1700	42.6	40	Drak Green
JC-2-2000A	1700~2060	51.2	40	Yellow
JC-4-1400A	1200~1560	36.0	40	Gray
JC-4-1800A	1560~2000	50.4	40	Red
JC-4-2600A	2000~2600	62.0	40	Green
JC-4-3400A	2600~3400	85.2	40	Drak Green
JC-4-4000A	3400~4120	102.4	40	Yellow

JC-100-D	90~120	2.2	50	Yellow
JC-150-D	120~170	3.2	50	White
JC-250-D	170~280	5.4	50	Drak Green
JC-350-D	280~370	7.2	50	Red
JC-450-D	420~480	9.6	50	Brown
JC-600-D	520~610	11.9	50	Gray
JC-750-D	610~810	16.1	50	Khaki
JC-850-D	810~870	17.3	50	Purple
JC-1000-D	870~1080	21.4	50	Blue
JC-2-1200D	1040~1220	23.8	50	Gray
JC-2-1400D	1220~1620	32.2	50	Khaki
JC-2-1700D	1620~1740	34.6	50	Purple
JC-2-2000D	1740~2160	42.8	50	Blue
JC-4-2400D	2080~2440	47.6	50	Gray
JC-4-2800D	2440~3240	64.4	50	Khaki
JC-4-3400D	3240~3480	69.2	50	Purple
JC-4-4000D	3480~4320	85.6	50	Blue

JC-150-S	120~170	2.2	75	White
JC-250-S	170~270	3.5	75	Drak Green
JC-350-S	320~370	4.7	75	Red
JC-450-S	370~470	6.0	75	Blue
JC-650-S	590~670	8.5	75	Khaki
JC-750-S	670~840	11.1	75	Orange
JC-1000-S	750~1050	13.5	75	Green
JC-2-1300S	1180~1340	17.0	75	Khaki
JC-2-1500S	1340~1680	22.0	75	Orange
JC-2-2000S	1680~2100	27.0	75	Green
JC-4-2600S	2360~2680	34.0	75	Khaki
JC-4-3000S	2680~3360	44.4	75	Orange
JC-4-4000S	3360~4200	54.0	75	Green
