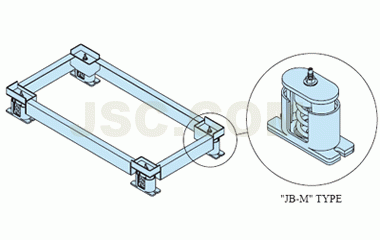

| CA Base |
| |
| Feature |
| |
|
 |
Low natural frequency. |
|
Hot dip galvanization finish. |
|
Springs in protective impact-resistance cases. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
|
|
 |
|
| |
| Applicaions |
| |
|
|
Air conditioner
. |
|
|
| |
| Finish |
| |
|
|
Hot Dip Galvanizing |
|
|
|
|
 |

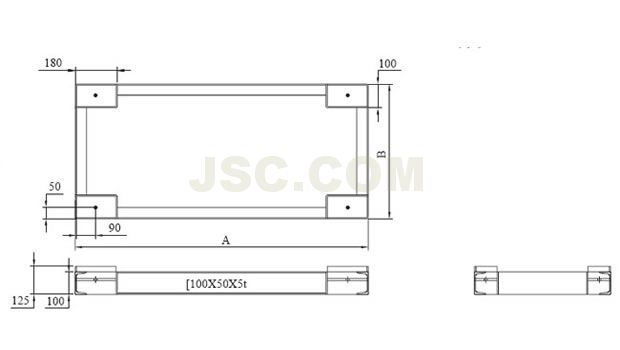

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimension（mm） |
| A |
B |
| CA-105 |
950 |
510 |
| CA-110 |
1470 |
510 |
| CA-115 |
1470 |
720 |
| CA-120 |
1810 |
720 |
| CA-130 |
1760 |
1050 |
| CA-140 |
1960 |
1200 |
| CA-205 |
980 |
485 |
| CA-210 |
1200 |
635 |
| CA-215 |
1640 |
635 |
| CA-220 |
1860 |
635 |
| CA-230 |
1910 |
1088 |
| CA-240 |
1920 |
1250 |
| CA-305 |
800 |
500 |
| CA-308 |
1100 |
500 |
| CA-310 |
1400 |
500 |
| CA-315 |
1400 |
750 |
| CA-320 |
1700 |
750 |
| CA-330 |
2000 |
880 |
|
| |
