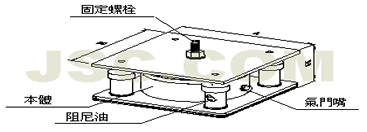

| SB Air Mount |
 |
| |
| Feature |
| |
|
 |
Air-cushioned isolation with liquid-filled dampers. |
|
Low natural frequency (3 ~ 5 Hz at operating load). |
|
High deflection |
|
Neoprene padded bottom base. |
|
Heavy wall construction. |
|
High lateral stability. |
|
Maintenance free. |
|
Extends machinery life. |
|
Combined resiliency and air prevents high static deflection. |
|
Wide load range available. |
| |
Patent No. M313032 |
| |
|
|
|
| Applicaions |
|
| |
|
|
Air compressors、CMM machinery、Forging |
| |
hammers、Industrial equipment、tools and |
| |
machinery、Sensitive measuring equipment |
| |
|
|
|
 |
| |
| Dimensions/Rated Capacity |
| |
| Part Number |
Dimension(mm) |
Load Range(Kgs) |
Natural
Frequency
(Hz) |
Mounting
Bolt
CS*L |
| A |
B |
H |
Min |
Max |
| JSC-400-SB |
235 |
235 |
120 |
400 |
700 |
3~5 |
M12-105L |
| JSC-700-SB |
260 |
260 |
120 |
400 |
700 |
3~5 |
M12-105L |
| JSC-900-SB |
270 |
270 |
120 |
700 |
900 |
3~5 |
M16-110L |
| JSC-1200-SB |
300 |
300 |
120 |
900 |
1200 |
3~5 |
M16-110L |
| JSC-1600-SB |
350 |
350 |
120 |
1200 |
1600 |
3~5 |
M16-110L |
| JSC-2000-SB |
400 |
400 |
120 |
1600 |
2000 |
3~5 |
M16-110L |
| JSC-2800-SB |
450 |
450 |
120 |
2000 |
2800 |
3~5 |
M20-150L |
| JSC-3500-SB |
500 |
500 |
120 |
800 |
3500 |
3~5 |
M20-150L |
|
| |
