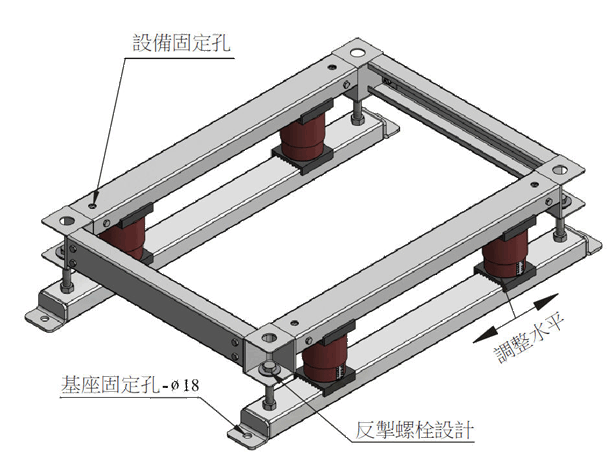

| CH Base |
| |
| Feature |
| |
|
 |
Low natural frequency. |
|
Powder Coating finish. |
|
Springs in protective impact-resistance cases. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
|
|
 |
|
| |
| Applicaions |
| |
|
|
Fan、Air-cooled water chillers |
| |
|
|
|
| |
| Finish |
| |
|
|
Powder Coating |
| |
|
|
|
|
|
 |

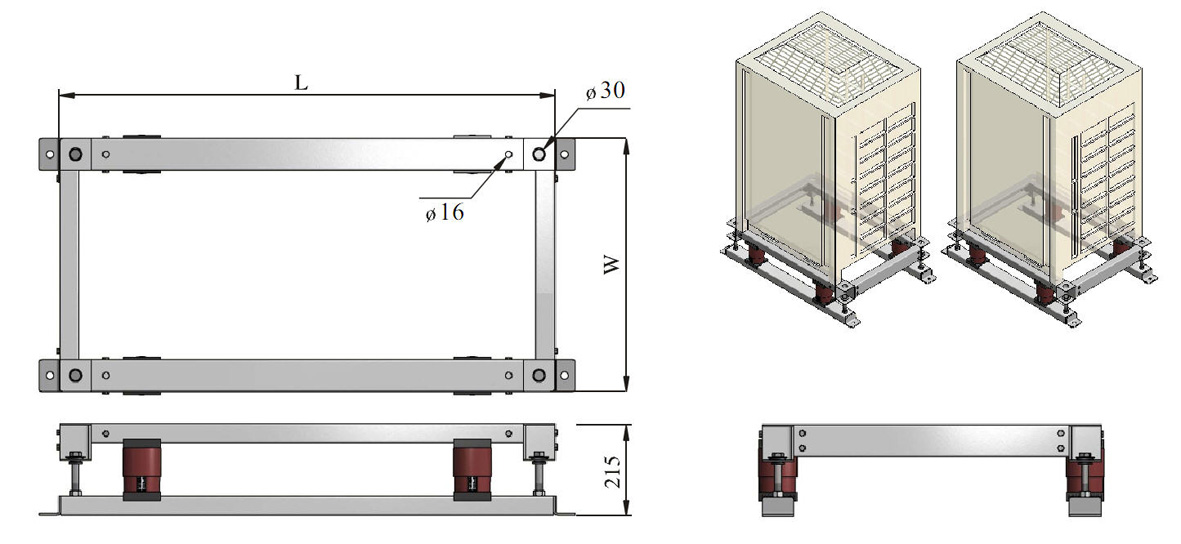

| Dimensions/Rated Capacity |
| |
| Part Number |
尺寸（mm） |
Mounts Quantlty |
Loading Capacity
(KG) |
| L |
W |
| CH-0807 |
830 |
700 |
4 |
160 |
| CH-0908 |
980 |
820 |
4 |
320 |
| CH-1008 |
1010 |
810 |
4 |
320 |
| CH-1108 |
1110 |
820 |
4 |
320 |
| CH-1208 |
1270 |
810 |
4 |
600 |
| CH-1308 |
1300 |
830 |
4 |
600 |
| CH-1808 |
1810 |
820 |
4 |
640 |
| CH-1906 |
1980 |
600 |
6 |
1200 |
| CH-1908 |
1920 |
830 |
4 |
800 |
| CH-2208 |
2230 |
830 |
4 |
800 |
|
| |
