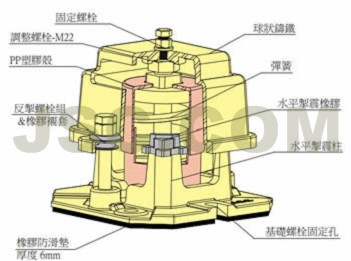

| JGD Seismic Mount |
 |
| |
| Feature |
| |
|
 |
Captive spring mount for seismic and restrained serivce . |
|
Ductile iron frame and housing . |
|
Resilient housing guides to prevent metal-to-matel contact . |
|
Hop dip galvanization finish. |
|
Low natural frequency. |
|
Non-skid Neoprene pad. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
| |
|
|
|
| Applicaions |
 |
| |
|
|
Heavy engines |
|
Pumps、Compressors |
|
Chillers、Boilers |
|
Cooling towers、Generators |
| |
|
|
|
| |
|
|
 |
| |

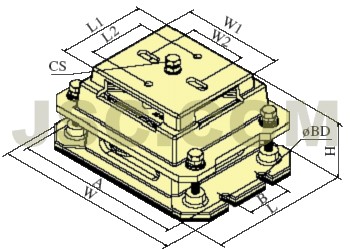

| Dimensions/Rated Capacity |
| |
| TYPE |
Dimension(mm) |
| L |
W |
A |
B |
L1 |
W1 |
L2 |
W2 |
H |
øBD |
CS |
| JGD-1 |
240 |
230 |
190 |
* |
96 |
118 |
* |
* |
210 |
16 |
M12 |
| JGD-2 |
250 |
340 |
300 |
* |
121 |
246 |
80 |
135 |
225 |
18 |
M16 |
| JGD-4 |
280 |
380 |
320 |
80 |
226 |
226 |
130 |
140 |
225 |
18 |
M20 |
|
| |
| Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
Color Code |
| JGD-1-100 |
90~120 |
2.0 |
50 |
Yellow |
| JGD-1-150 |
120~160 |
3.0 |
50 |
While |
| JGD-1-250 |
160~260 |
5.0 |
50 |
Drak Green |
| JGD-1-350 |
320~360 |
7.0 |
50 |
Red |
| JGD-1-400 |
360~420 |
8.0 |
50 |
While/Black |
| JGD-1-450 |
420~470 |
9.0 |
50 |
Brown |
| JGD-1-500 |
470~520 |
10.0 |
50 |
Drak Green/Black |
| JGD-1-600 |
570~620 |
12.0 |
50 |
Gray |
| JGD-1-750 |
700~750 |
15.2 |
50 |
Khaki |
| JGD-1-850 |
750~870 |
17.0 |
50 |
Gray/Black |
| JGD-1-1000 |
870~1050 |
20.2 |
50 |
Khaki/Black |
| JGD-2-1200 |
1050~1250 |
24.0 |
50 |
Gray |
| JGD-2-1400 |
1250~1500 |
30.2 |
50 |
Khaki |
| JGD-2-1700 |
1400~1700 |
34.0 |
50 |
Gray/Black |
| JGD-2-2000 |
1700~2000 |
40.4 |
50 |
Khaki/Black |
| JGD-4-2400 |
2000~2400 |
48.0 |
50 |
Gray |
| JGD-4-2800 |
2400~2800 |
60.4 |
50 |
Khaki |
| JGD-4-3400 |
2800~3400 |
68.0 |
50 |
Gray/Black |
| JGD-4-4000 |
3200~4000 |
80.8 |
50 |
Khaki/Black |
|
| |
