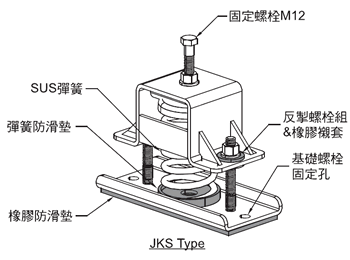

| JKS Spring Mount |
 |
| |
| Feature |
| |
|
 |
Low natural frequency |
|
Non-skid Neoprene pad |
|
Quick and easy installation |
|
Heavy-duty vibration isolation |
|
Quick and easy installation |
|
Heavy-duty vibration isolation |
|
Spring is SUS304 |
| |
|
|
|
| Applicaions |
|
| |
| |
|
|
Heavy engines |
|
Pumps |
|
Chillers, boilers |
|
Cooling towers |
|
Generators |
| |
 |
|
|
|
| Dimensions/Rated Capacity |
| |
| Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
| JKS-1-100 |
90~110 |
4.3 |
25 |
| JKS-1-200 |
150~200 |
7.0 |
25 |
| JKS-1-300 |
250~300 |
11.2 |
25 |
| JKS-1-400 |
350~400 |
14.9 |
25 |
| JKS-1-500 |
450~520 |
20.6 |
25 |
| JKS-1-600 |
520~620 |
24.3 |
25 |
| JKS-1-700 |
620~700 |
27.9 |
25 |
| JKS-1-850 |
700~890 |
35.2 |
25 |
|
| |
