| JH-M Hanger Mount |
 |
| |
| Feature |
| |
|
 |
With deflection scale
. |
|
Fail safe design. |
|
Heavy wall construction. |
|
Noise and vibration isolation. |
|
Maintenance free. |
|
Wide load range available. |
| |
|
|
|
| Applicaions |
 |
| |
| Part Number |
尺寸(mm) |
| A |
B |
H |
| JH-2-M |
100 |
220 |
290 |
| JH-4-M |
200 |
220 |
290 |
|
| |
|
|
| |
|
| |
|
|

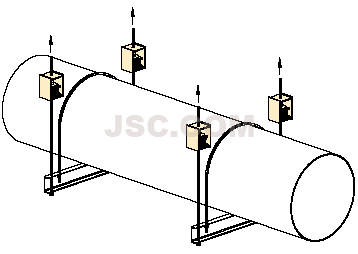

Hanging ceilings |
|
HVAC ducting networks |
|
Piping networks |
|
Fans、Air handles |
| |
|
| |
 |
|
|
| |
| Dimensions/Rated Capacity |
| |
| Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
Color Code |
| JH-2-1000M |
900~1040 |
40.0 |
25 |
Red |
| JH-2-1200M |
1040~1240 |
48.0 |
25 |
Gray |
| JH-2-1400M |
1240~1400 |
56.0 |
25 |
Yellow |
| JH-2-1600M |
1400~1720 |
68.0 |
25 |
Khaki |
| JH-2-2000M |
1720~2000 |
80.0 |
25 |
Drak Green |
| |
|
|
|
|
| JH-4-1600M |
1400~1600 |
64.0 |
25 |
Brown |
| JH-4-2000M |
1800~2080 |
80.0 |
25 |
Red |
| JH-4-2400M |
2080~2480 |
96.0 |
25 |
Gray |
| JH-4-2800M |
2480~2800 |
112.0 |
25 |
Yellow |
| JH-4-3200M |
2800~3440 |
136.0 |
25 |
Khaki |
| JH-4-4000M |
3440~4000 |
160.0 |
25 |
Drak Green |
|
| |
