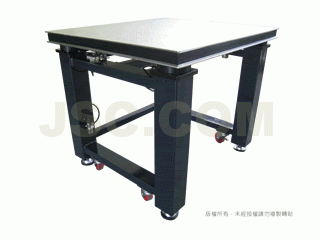

JT-T Workstation

JT產品圖

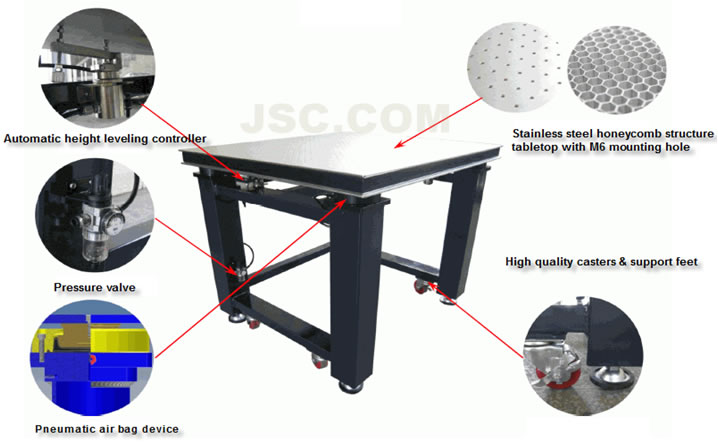

Features


	Pneumatic vibration isolation system
	Ultra-low vertical and horizontal natural frequency
	High strength stainless steel honeycomb tabletop
	With mounting hole pattern on tabletop
	3 valve controller can be automatic leveling adjustment

Applicaions


	Optical microscopes
	Precision inspection stations
	Highly sensitive laboratory equipment
	High-accuracy measuring instrument

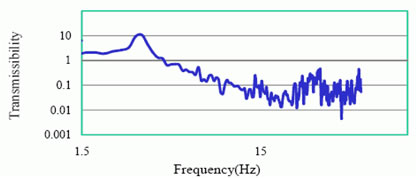

jtt05

jtt

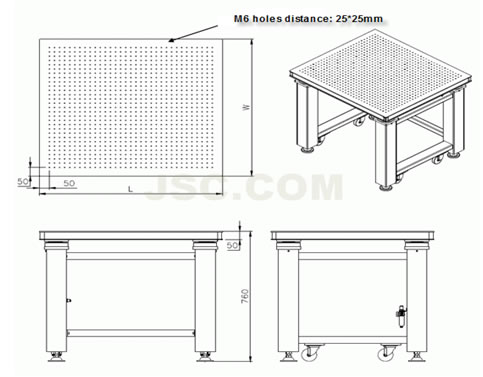

Dimensions/Rated Capacity

jtt06

Specifications
Part Number	JT-0908-T	JT-1008-T	JT-1208-T	JT-1508-T
Dimensions(mm)	L900*W800	L1000*W800	L1200*W800	L1500*W800
Height(mm)	760±20
Leveling type	Automatic leveling ±0.025mm & Recovery time <1.5 sec
Natural Frequency	<3.5Hz
Surface top	SUS 304
Appendix	PU tube 3m*6mm diameter & Air pressure Regulator
Max. load capacity	300 Kg
