    Rubber Flexible Expansion Joint
橡膠軟管

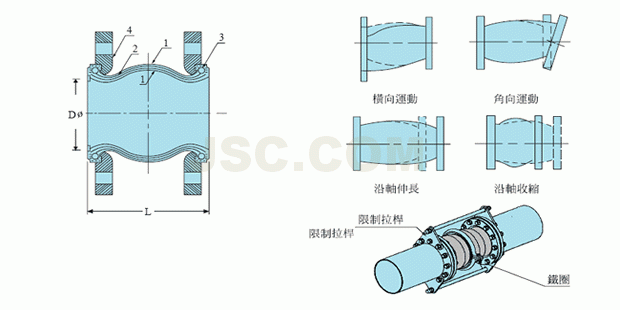

No. Part Material
1 Body   Neoprene, Other elastomers also available.
2 Reinforce Nylon Type Cord.
3 Wire Hard Steel Wire.
4 Flange Mild Steel, Galvanized Various drilling available
橡膠軟管目錄下載 橡膠軟管目錄下載處

TYPE
單球法蘭式軟管
Single Sphere Connectors
雙球法蘭式軟管
Double Sphere Connectors
雙球由任式軟管
Double Sphere Threaded Unions
Nominal Bore  Dimensions (mm) Dimensions (mm) Dimensions (mm)
 φD

mm		 L

mm		 Axial Elonga-
tion
mm		 Axial Compre-ssion
mm		  φD

mm		 L

mm		 Axial Elonga-tion
mm		 Axial Compre-ssion
mm		  φD

mm		 L

mm		 Axial Elonga-tion
mm		 Axial Compre-ssion
mm
    1/2"   15 203 22 6
3/4"   20 185 22 6
1" 25 95 8 4   25 180 22 6
1-1/4" 40 95 8 4   32 190 22 6
1-1/2" 40 95 8 4 40 175 50 30 40 185 22 6
2" 52 105 8 5 52 175 50 30 50 175 22 6
2-1/2" 68 115 12 6 68 175 50 30 65 225 22 6
3" 76 130 12 6 76 175 50 30 80 225 22 6
 4" 103 135 18 10 103 225 50 35
5" 128 170 18 10 128 225 50 35
6" 152 180 18 10 152 225 50 35
8" 194 205 25 14 194 325 50 35
10" 250 240 25 14 250 325 60 35
12" 300 260 25 14 300 325 60 35
14" 320 265 25 16 320 350 40 30
16" 372 265 25 16 372 350 40 30
18" 415 265 25 16 415 350 40 30
20" 454 265 25 16 454 350 40 30
24" 580 254 19 13 580 350 40 30
Max Pressure 10 kg/cm^2
Max Temperature -20℃~104℃ -20 ℃ ~ 104 ℃ -20 ℃ ~ 115 ℃
Vacuum Rating 400 mm Hg 400 mm Hg 405 mm Hg
Angular Deflection 15° 15°~25° 10°~30°
