MR Rubber Mount MR產品圖

Feature

Rugged construction
Weather resistant coating.
High efficiency.
Ability to level equipment and machinery.
Non-skid Neoprene elastomer.
Easy leveling.
No special foundation required.
Maintenance free.
Noise attenuation.
Resist oil, ozone and caustic materials.

Applicaions MR尺寸圖

Punch presses
Lathes
Milling machines
Screw machines
Transformers
Pumps

MR型橡膠式避震器目錄下載 MR型橡膠式避震器目錄下載處
MR型橡膠式避震器目錄下載 MR型橡膠式避震器目錄下載處

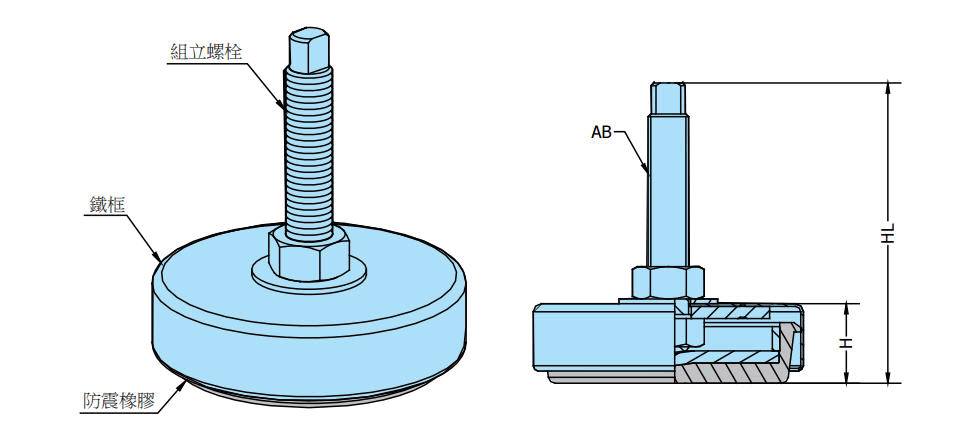

MR細部圖
    Dimensions/Rated Capacity

Part Number Dimension (mm) Load Range(Kgs)
D H HL AB Min Max
MR-80 80 33 136 M12 200 500
MR-120 120 40 139 M16 500 1500
MR-160 160 48 147 M22 1500 2800
MR-200 200 60 225 M30 2800 4000
