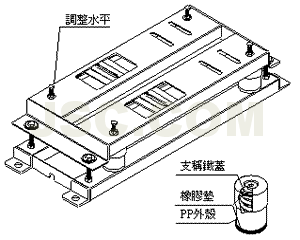

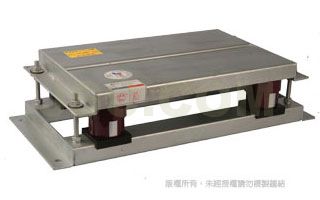

| CN-D Base |
| |
| Feature |
| |
|
 |
Low natural frequency. |
|
Hot dip galvanization finish. |
|
Springs in protective impact-resistance cases. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
|
|
 |
|
| |
| Applicaions |
| |
|
|
Pumps、Motors |
| |
|
|
|
| |
| Finish |
| |
|
|
Hot Dip Galvanization |
| |
|
|
|
|
|
 |

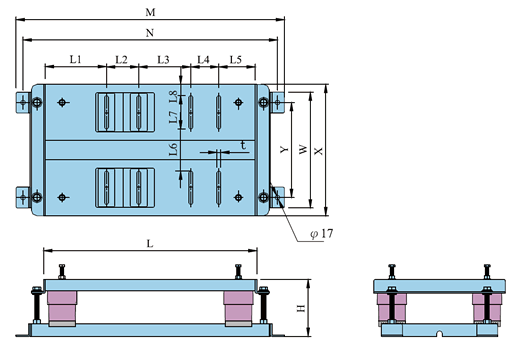

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimensions（mm） |
| L |
X |
W |
H |
M |
N |
Y |
| CN-55D |
550 |
410 |
355 |
240 |
760 |
710 |
280 |
| CN-75D |
750 |
470 |
415 |
240 |
960 |
910 |
340 |
| CN-95D |
950 |
510 |
455 |
240 |
1160 |
1110 |
380 |
| CN-115D |
1150 |
560 |
505 |
240 |
1360 |
1310 |
430 |
| CN-130D |
1300 |
590 |
535 |
240 |
1510 |
1460 |
460 |
| CN-145D |
1450 |
610 |
555 |
240 |
1660 |
1610 |
480 |
| CN-170D |
1700 |
730 |
675 |
240 |
1910 |
1860 |
600 |
| CN-200D |
2000 |
850 |
795 |
240 |
2210 |
2160 |
720 |
| 型號 |
尺寸（mm） |
| t |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
| CN-55D |
14 |
135 |
130 |
165 |
* |
120 |
130 |
100 |
40 |
| CN-75D |
14 |
210 |
150 |
160 |
100 |
130 |
150 |
120 |
40 |
| CN-95D |
14 |
230 |
150 |
280 |
120 |
170 |
190 |
120 |
40 |
| CN-115D |
14 |
260 |
150 |
390 |
120 |
230 |
240 |
120 |
40 |
| CN-130D |
14 |
290 |
150 |
490 |
130 |
240 |
270 |
120 |
40 |
| CN-145D |
14 |
205 |
150 |
640 |
130 |
325 |
290 |
120 |
40 |
| CN-170D |
18 |
280 |
190 |
680 |
160 |
390 |
340 |
140 |
55 |
| CN-200D |
18 |
350 |
190 |
830 |
200 |
430 |
460 |
140 |
55 |
|
| |
