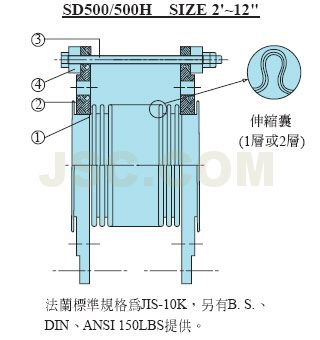

SD-500 Stainless Steel Expansion Joint SD-500D產品圖

Feature

Flexible quantity of the axial：+/- 15mm (SD500/500H)
Use the temperature range：－50℃~450℃。
The surface of liquid contacting is monolithic constructed
  by stainless steel as body pipe without welding and
  eliminate the corrosion of welded material that extend its
  working expectancy.

Applicaions

Connection of pipe system on rotating oscillating
  machines.
Absorbing in vibration and noise which making
  bypumps ,compressors , engines , burners….etc

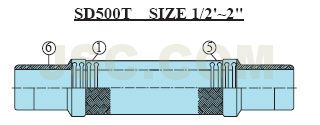

SD-500T產品圖
SD-500不銹鋼伸縮接頭目錄下載 SD-500不銹鋼伸縮接頭目錄下載處

   Dimensions/Rated Capacity

Nominal Bore Total Length Bellows Axial Movement Force To Compress Kgs Effective Area cm^2
mm Inch mm

O.D. (mm)

 Corr's No (mm) Ext. (mm) Comp. (mm)
40 1 1/2 300 60 32 +10 -40 150 22.2
50 2 300 77 24 +10 -40 180 34.5
65 2 1/2 300 92 20 +10 -40 280 52.5
80 3 300 108 20 +10 -40 260 71.2
100 4 300 133 16 +10 -40 280 110.5
125 5 300 164 15 +10 -40 400 168.7
150 6 300 191 14 +10 -40 530 233.9
200 8 300 254 13 +10 -40 650 389.1
250 10 300 295 12 +10 -40 750 592.2
300 12 300 345 12 +10 -40 850 829.7
