SE Air Mount

SE產品圖

Feature


	The JSC SE series pneumatic vibration isolation system
	uses servo controlled air springs.
	Minimal settling time with optimum damping and correct
	valve gain.
	Vertical adjustable damping.
	Support payloads from 400 kg to 2000 kg.
	Per isolator Valve re-leveling accuracies to ±0.02 mm.
	Easily integrated into machine designs.

Applicaions

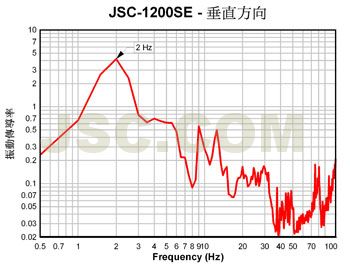

振動傳導率與頻率之關係

Metrology Instruments、Electron

Microscopes、Coordinate

Measuring Machines、Precision

Manufacturing Equipment、

Sensitive Optical Laboratory

Equipment、Environmental Test

Equipment、Inspection and

CalibrationEquipment、

Specialized Isolated Foundations

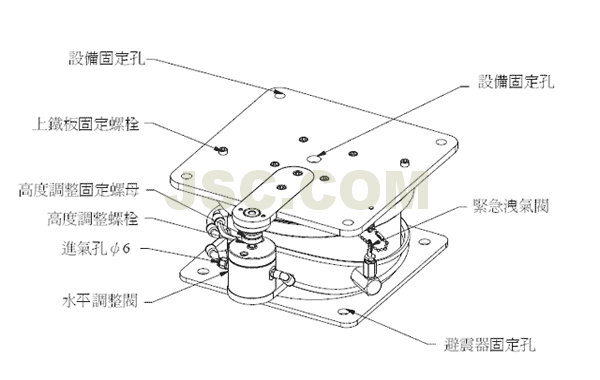

SE細部圖

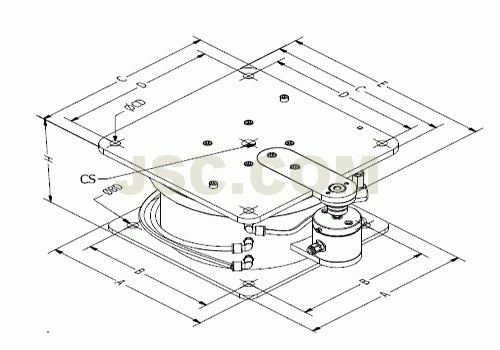

SE尺寸圖

Dimensions/Rated Capacity

Part Number	Dimension(mm)									Load Range Kgs
Part Number	A	B	C	D	E	H	CS	φCD	φBD	Load Range Kgs
JSC-200-SE	140	115	160	135	202	147	M10	9	11	100~220
JSC-400-SE	160	125	190	150	237	147	M12	12	12	200~480
JSC-700-SE	200	160	220	180	267	147	M12	12	12	400~720
JSC-1200-SE	250	200	270	230	318	147	M16	14	14	900~1250
JSC-2000-SE	350	300	380	340	425	147	M16	14	14	1200~2500
