DR Rubber Mount DR產品圖

Feature

Wide-range load with low natural frequency.
Resist oil, ozone and caustic materials.
Effective vibration isolation .

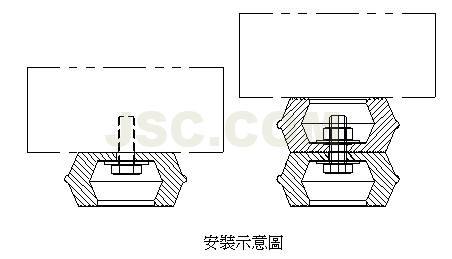

Quick and easy installation.
Noise attenuation.
Durable.
Maintenance free.

Applicaions DR尺寸圖

Ruggedized installations.
Industrial machinery.
Blowers, pumps, and compressors .
Floating floors.


DR碟形橡膠目錄下載 DR碟形橡膠目錄下載處
DR細部圖
    Dimensions/Rated Capacity

Part Number Dimension (mm) Rated Capacity(Kgs) material Compression
(mm)
Load
(Kgs)
øD ød H Min Max
DR-90 90 13 40 30 100 CR 6 100
