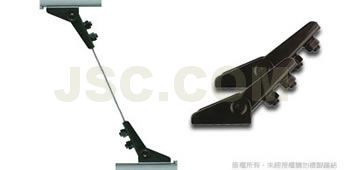

| SWB Seismic Snubber |
 |
| |
| Feature |
| |
|
 |
Superior Safety. |
|
Utilized regardless of installation angle. |
|
Easy to install and adjustment. |
| |
Patent No. D129667 |
| |
|
|
|
| Applicaions |
|
| |
|
|
Pipe Riser Support |
|
Systems
suspened equipment seismic restraintground |
| |
support equipment seismic restraint |
|
|
 |
| |

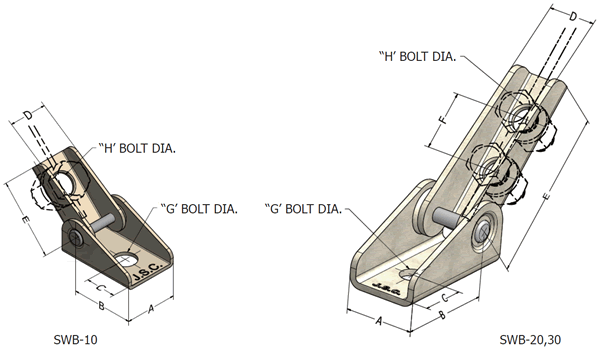

| Dimensions/Rated Capacity |
| |
| TYPE |
Dimensions(mm) |
Cable Diameter
inch |
Load
kgs |
| A |
B |
C |
D |
E |
F |
G |
H |
| SWB-10 |
32 |
38 |
19 |
23.5 |
42 |
* |
13 |
13 |
1/8" |
300 |
| SWB-15 |
35 |
50 |
25 |
25 |
80 |
32 |
13 |
13 |
5/32" |
650 |
| SWB-20 |
50 |
75 |
35 |
34 |
115 |
40 |
18 |
18 |
3/16" |
1200 |
| SWB-30 |
50 |
75 |
35 |
34 |
115 |
40 |
18 |
18 |
1/4" |
2000 |
|
| |
