| CF Base |
| |
| Feature |
| |
|
 |
Low natural frequency. |
|
Hot dip galvanization finish. |
|
Springs in protective impact-resistance |
| |
cases. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
|
|
 |
|
| |
| Applicaions |
| |
|
|
Pumps、Motors |
| |
|
|
|
| |
| Finish |
| |
|
|
Hot Dip Galvanizing |
| |
|
|
|
|
|
 |

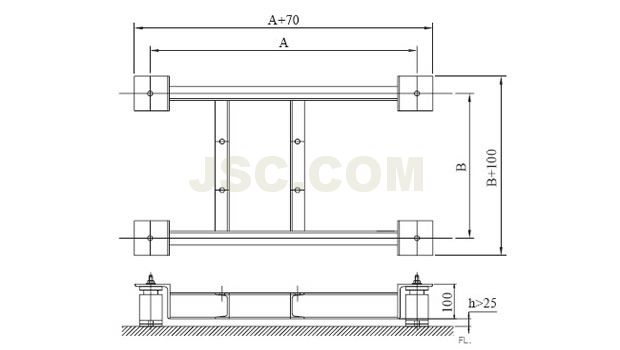

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimension（mm） |
Channel Iron |
| A |
B |
| CF-080-02 |
750 |
450 |
[ 75*40 |
| CF-080-05 |
800 |
500 |
[ 75*40 |
| CF-080-10 |
900 |
600 |
[ 75*40 |
| CF-080-30 |
1000 |
800 |
[ 75*40 |
| CF-080-50 |
1200 |
900 |
[ 100*50 |
| CF-080-75 |
1400 |
1000 |
[ 100*50 |
| CF-080-100 |
1500 |
1100 |
[ 100*50 |
| CF-090-05 |
1300 |
700 |
[ 75*40 |
| CF-090-10 |
1400 |
800 |
[ 75*40 |
| CF-090-20 |
1700 |
1000 |
[ 100*50 |
| CF-090-40 |
1900 |
1100 |
[ 100*50 |
| CF-090-60 |
2100 |
1100 |
[ 100*50 |
| CF-090-75 |
2300 |
1200 |
[ 100*50 |
| CF-090-100 |
2400 |
1300 |
[ 100*50 |
|
| |
