| JG-M Seismic Mount |
 |
| |

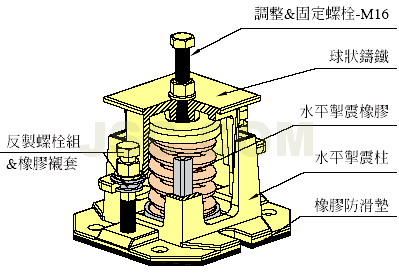

| Feature |
| |
|
 |
Vibration Isolators and Seismic Restraints |
|
Ductile iron frame and housing. |
|
Low natural frequency. |
|
Hop dip galvanization finish. |
|
Non-skid Neoprene pad. |
|
Resilient housing guides to prevent metal-to-matel contact. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation. |
|
Weather resistant finish |
| |
|
|
|
| Applicaions |
 |
| |
|
|
Heavy engines |
|
Pumps、Compressors |
|
Chillers、Boilers |
|
Generators |
| |
|
|
|
|
|
 |
| |

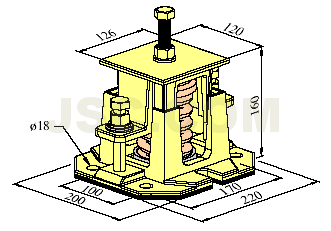

| Dimensions/Rated Capacity |
| |
| Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
Color Code |
| JG-170-M |
150~190 |
4.3 |
40 |
Blue |
| JG-200-M |
175~225 |
5.0 |
40 |
Brown |
| JG-270-M |
230~300 |
6.8 |
40 |
Gray |
| JG-340-M |
300~380 |
8.5 |
40 |
While/Black |
| JG-410-M |
360~460 |
10.3 |
40 |
Drak Green/Black |
| JG-450-M |
420~470 |
11.3 |
40 |
Yellow |
| JG-530-M |
500~550 |
13.2 |
40 |
Gray/Black |
| JG-650-M |
620~690 |
16.3 |
40 |
Dark Green |
| JG-700-M |
680~750 |
17.8 |
40 |
Yellow/Black |
| JG-750-M |
710~790 |
18.8 |
40 |
Red |
| JG-910-M |
860~960 |
22.8 |
40 |
Drak Green/Black |
| JG-1000-M |
960~1060 |
25.3 |
40 |
Red/Black |
|
| |
