BR-300 Rubber Mount RS產品圖

Feature

Durable.
Noise attenuation.
Effective vibration isolation .
Sturdy, reliable construction.
Quick and easy installation.

Applicaions

Transformers、Generators、electronic
  equipment、the control panel.
RS型橡膠式避震器目錄下載 RS型橡膠式避震器目錄下載處
RS型橡膠式避震器目錄下載 RS型橡膠式避震器目錄下載處

RS

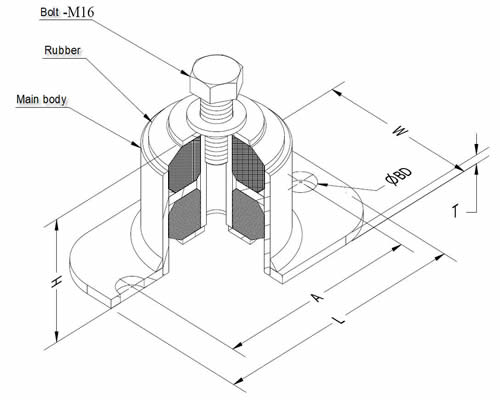

RS尺寸圖
   Dimensions/Rated Capacity

Part Number Dimension(mm) Load Range (Kgs)
L W H CS A øBD T Min Max
BR-300 150 94 70 M16 120 17 5 150 300
