| SK Air Mount |
 |
| |
| Feature |
| |
|
 |
Air-cushioned isolation with liquid-filled dampers. |
|
Low natural frequency (3 ~ 5 Hz at operating load). |
|
Neoprene padded bottom base.Extends machinery life. |
|
Maintenance free. |
|
Combined resiliency and air prevents high static deflection. |
|
Wide load range available. |
|
With anti-corrosion oil to prevent oil pollution in general |
|
Air pressure in line with JISD-4101 test standard. |
| |
Patent No. M373982 |
| |
|
|
|
| Applicaions |
 |
| |
|
|
Reciprocating air compressors,Punch, |
| |
Hydraulic cutting washing machine, |
| |
machine,shearing machine. |
| |
|
| |
|
| |
|
|
|
 |

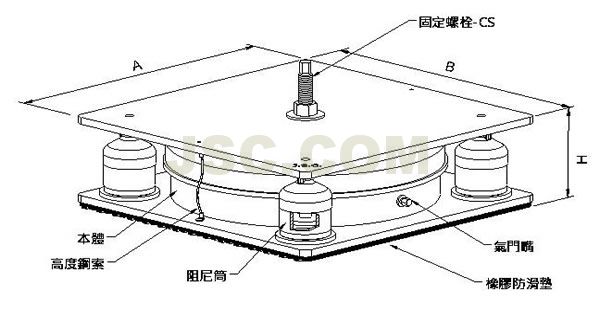

| Dimensions/Rated Capacity |
| |
Part Number |
Dimension (mm) |
Load Range (Kgs) |
Natural Frequency |
Mounting Bolt CS*L |
A |
B |
H |
Min |
Max |
(Hz) |
JSC-1200-SK |
300 |
300 |
120 |
900 |
1200 |
3~5 |
M16-110L |
JSC-1600-SK |
350 |
350 |
120 |
1200 |
1600 |
3~5 |
|
JSC-2000-SK |
380 |
380 |
120 |
1600 |
2000 |
3~5 |
|
JSC-3500-SK |
525 |
525 |
120 |
2800 |
3500 |
3~5 |
|
JSC-6000-SK |
575 |
575 |
120 |
3500 |
6000 |
3~5 |
|
JSC-9000-SK |
630 |
630 |
120 |
6000 |
|
3~5 |
|
|
| |
