| JG Seismic Mount |
 |
| |
| Feature |
| |
|
 |

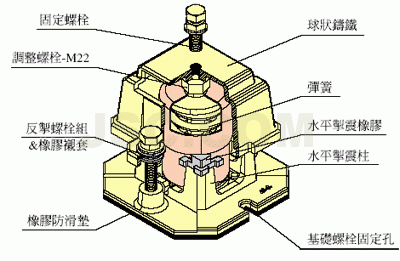

Captive spring mount for seismic and restrained serivce . |
|
Ductile iron frame and housing . |
|
Resilient housing guides to prevent metal-to-matel contact . |
|
Hop dip galvanization finish. |
|
Low natural frequency. |
|
Non-skid Neoprene pad. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
| |
|
|
|
| Applicaions |
 |
| |
|
|
Heavy engines |
|
Pumps、Compressors |
|
Chillers、Boilers |
|
Cooling towers、Generators |
| |
|
|
|
|
|
 |
| |

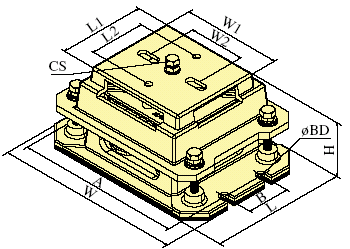

| Dimensions/Rated Capacity |
| |
| TYPE |
Dimension(mm) |
| L |
W |
A |
B |
L1 |
W1 |
L2 |
W2 |
H |
øBD |
CS |
| JG-1 |
210 |
210 |
186 |
* |
117 |
97 |
* |
* |
190 |
16 |
M12 |
| JG-2 |
240 |
330 |
270 |
* |
107 |
227 |
80 |
130 |
190 |
20 |
M16 |
| JG-4 |
280 |
370 |
300 |
60 |
195 |
205 |
130 |
130 |
190 |
20 |
M20 |
|
| |
| Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
Color Code |
| JG-1-40 |
38~42 |
1.0 |
40 |
Yellow |
| JG-1-80 |
70~90 |
2.0 |
40 |
While |
| JG-1-130 |
110~150 |
3.3 |
40 |
Drak Green |
| JG-1-150 |
130~170 |
3.8 |
40 |
Red |
| JG-1-170 |
150~190 |
4.3 |
40 |
Blue |
| JG-1-200 |
175~225 |
5.0 |
40 |
Brown |
| JG-1-270 |
230~300 |
6.8 |
40 |
Gray |
| JG-1-340 |
300~380 |
8.5 |
40 |
While/Black |
| JG-1-410 |
360~460 |
10.3 |
40 |
Drak Green/Black |
| JG-1-450 |
420~470 |
11.3 |
40 |
Yellow |
| JG-1-530 |
500~550 |
13.2 |
40 |
Gray/Black |
| JG-1-650 |
620~690 |
16.3 |
40 |
Dark Green |
| JG-1-700 |
680~750 |
17.8 |
40 |
Yellow/Black |
| JG-1-750 |
710~790 |
18.8 |
40 |
Red |
| JG-1-910 |
860~960 |
22.8 |
40 |
Drak Green/Black |
| JG-1-1000 |
960~1060 |
25.3 |
40 |
Red/Black |
| JG-2-680 |
650~710 |
17.0 |
40 |
While/Black |
| JG-2-800 |
780~870 |
20.6 |
40 |
Drak Green/Black |
| JG-2-900 |
860~950 |
22.6 |
40 |
Yellow |
| JG-2-1050 |
1000~1100 |
26.4 |
40 |
Gray/Black |
| JG-2-1300 |
1230~1350 |
32.6 |
40 |
Dark Green |
| JG-2-1500 |
1420~1580 |
37.6 |
40 |
Yellow/Black |
| JG-2-1800 |
1730~1915 |
45.6 |
40 |
Drak Green/Black |
| JG-2-2000 |
1920~2125 |
50.6 |
40 |
Red/Black |
| JG-4-1800 |
1710~1900 |
45.2 |
40 |
Yellow |
| JG-4-2100 |
2000~2220 |
52.8 |
40 |
Gray/Black |
| JG-4-2600 |
2480~2740 |
65.2 |
40 |
Dark Green |
| JG-4-3000 |
2850~3160 |
75.2 |
40 |
Yellow/Black |
| JG-4-3600 |
3460~3830 |
91.2 |
40 |
Drak Green/Black |
| JG-4-4000 |
3840~4000 |
101.2 |
40 |
Red/Black |
|
| |
