SEK Air Mount SE產品圖

Feature

The JSC SEK series pneumatic vibration isolation system
  uses servo controlled air springs.
Minimal settling time with optimum damping and correct
  valve gain.
Vertical adjustable damping.
Support payloads from 150 kg to 1200 kg.
Per isolator Valve re-leveling accuracies to ±0.2 mm.
Easily integrated into machine designs.

Applicaions
SA型氣墊式避震器目錄下載 SE型氣墊式避震器目錄下載處
SA型氣墊式避震器目錄下載 SE型氣墊式避震器目錄下載處

Metrology Instruments、Electron Microscopes、
  Coordinate Measuring Machines、
  Precision Manufacturing Equipment、
  Sensitive Optical Laboratory Equipment、
  Environmental Test Equipment、Inspection and
  CalibrationEquipment、Specialized Isolated Foundations

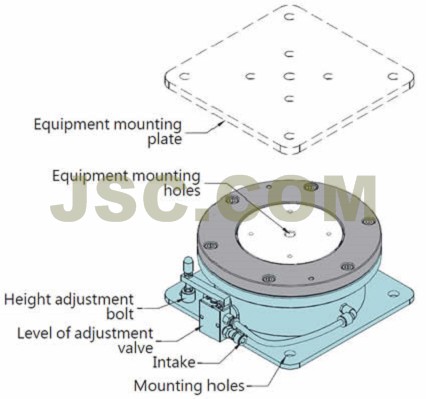

SE細部圖SE細部圖

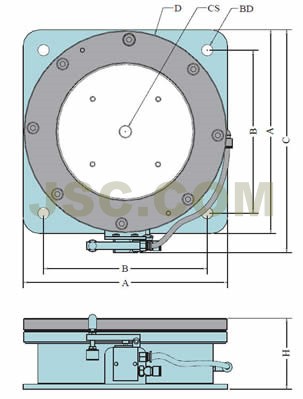

    Dimensions/Rated Capacity

Part Number Dimension(mm) Load Range
Kgs
A B C D H CS φBD
JSC-150-SEK 140 115 166 114 88 M10 9 50~180
JSC-400-SEK 170 135 195 174 88 M12 12 200~480
JSC-700-SEK 200 160 225 200 88 M12 12 400~720
JSC-1200-SEK 250 200 275 248 88 M16 14 900~1250
