| JH-A Hanger Mount |
 |
| |
| Feature |
| |
|
 |
Lower spring rate
. |
|
Elastomer-in-shear. |
|
Easy to install and suited to support lightweight equipment
. |
|
Noise and vibration isolation. |
|
Maintenance free
. |
|
Wide load range available. |
|
Patent No. 500162 |
| |
|
|
|
| Applicaions |
|
| |
|
|
Hanging ceilings |
|
HVAC ducting networks |
|
Piping networks、Other suspension applications |
|
Fans、Air units |
|
|
 |
| |

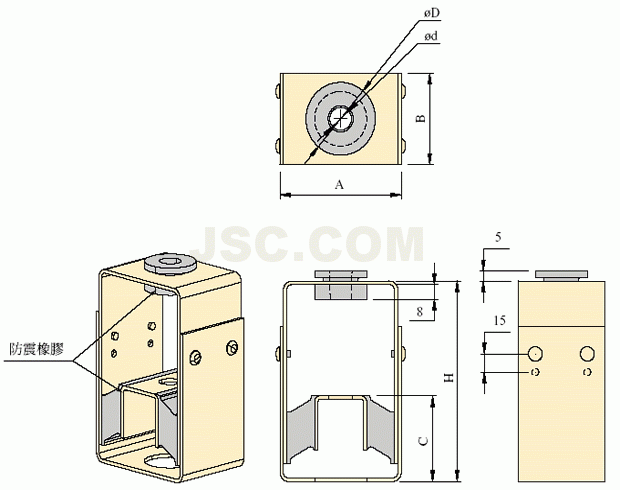

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimensions(mm) |
Rated Capacity
kgs |
| A |
B |
C |
H |
øD |
ød |
| JH-030-A |
70 |
40 |
32 |
85 |
28 |
11 |
10~30 |
| JH-060-A |
70 |
50 |
37 |
90 |
28 |
11 |
30~60 |
| JH-100-A |
70 |
50 |
45 |
110 |
28 |
11 |
60~100 |
|
| |
