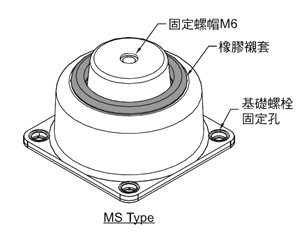

MS Spring Mount MS產品圖

Feature

Low natural frequency
High efficiency of Anti-vibration.
The lateral motion condition stability is high.
Easy to install.
Frame Material of Aluminum
Stainless steel design of high weatherability.

Applicaions MS尺寸圖

Electronic equipment
small precisionequipment

JL型彈簧式避震器目錄下載 MS型彈簧式避震器目錄下載處
JL型彈簧式避震器目錄下載 MS型彈簧式避震器目錄下載處
   Dimensions/Rated Capacity

Part Number Rated Capacity
Kgs
Spring Rate
Kg/mm
Rated Defl.
mm
Color Code
MS-005 4.5~8.0 0.4 25 Yellow
MS-010 8.0~11.0 0.6 25 Blue
MS-015 11.0~18.0 1.0 25 Drak Green
MS-025 18.0~28.0 1.5 25 Brown
