| JH-E Hanger Mount |
 |
| |
| Feature |
| |
|
 |
Lower spring rate
. |
|
Elastomer-in-shear. |
|
Easy to install and suited to support lightweight equipment
. |
|
Noise and vibration isolation. |
|
Maintenance free
. |
|
Wide load range available. |
| |
|
|
|
| Applicaions |
  |
| |
|
|
Hanging ceilings |
|
HVAC ducting networks |
|
Piping networks、Other suspension applications |
|
Fans、Air units |
|
|
 |
| |

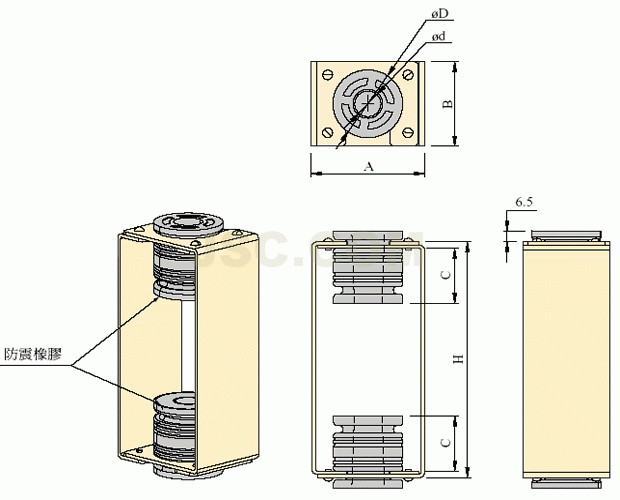

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimensions(mm) |
Rated Capacity
kgs |
| A |
B |
C |
H |
øD |
ød |
| JH-050-E |
55 |
45 |
30 |
110 |
30 |
11 |
30~60 |
| JH-120-E |
65 |
50 |
33 |
140 |
40 |
15 |
60~150 |
| JH-200-E |
70 |
60 |
33 |
140 |
50 |
15 |
150~230 |
| JH-350-E |
80 |
60 |
33 |
140 |
60 |
15 |
230~350 |
|
| |
