JC-P Spring Mount JCP產品圖

Feature

Allows easy inspection since the spring deflection can be
  visually checked.
Easy to install and suited to support lightweight equipment.
Quick and easy installation.
Weather resistant finish.

Applicaions

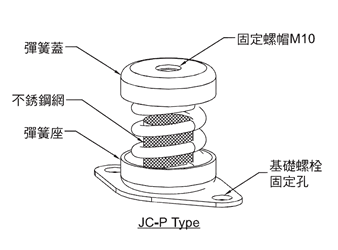

JCP細部圖

JCP型彈簧式避震器目錄下載 JCP型彈簧式避震器目錄下載處
JCP型彈簧式避震器安裝說明下載 JCP型彈簧式避震器安裝說明下載處

Pumps and compressors.
Fans and Blowers.
Air handling units .
JCP尺寸圖

   Dimensions/Rated Capacity

Part Number Rated Capacity
Kgs		 Spring Rate
Kg/mm		 Rated Defl.
mm		 Color Code
JC-020-P 10~20 0.8 25 Yellow
JC-030-P 20~30 1.2 25 Drak Green
JC-050-P 30~50 2.0 25 Red
JC-070-P 50~80 2.8 25 Blue
JC-090-P 80~100 3.6 25 Brown
JC-120-P 100~130 4.8 25 Gray
