JH-D Hanger Mount JH-D產品圖

Feature

Neoprene bushing for upper mounting rod.
With deflection scale.
Fail safe design.
Natural frequency 2.3Hz.
Noise and vibration isolation.
Maintenance free .
Wide load range available.

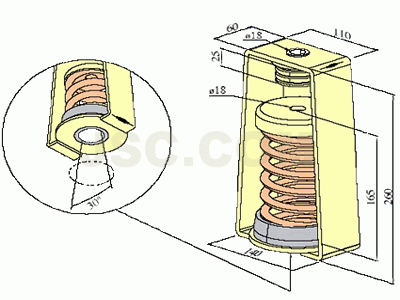

Applicaions JH-D尺寸圖

Hanging ceilings
HVAC ducting networks
Other suspension applications


JH-D懸吊式避震器目錄下載 JH-D懸吊式避震器目錄下載處

   Dimensions/Rated Capacity

Part Number Rated Capacity
Kgs
Spring Rate
Kg/mm
Rated Defl.
mm
Color Code
JH-100-D 90~120 2.2 50 Yellow
JH-150-D 120~170 3.2 50 White
JH-250-D 170~280 5.4 50 Drak Green
JH-350-D 280~370 7.2 50 Red
JH-450-D 420~480 9.6 50 Brown
JH-600-D 520~610 11.9 50 Gray
JH-750-D 610~810 16.1 50 Khaki
JH-850-D 810~870 17.3 50 Purple
JH-1000-D 870~1080 21.4 50 Blue
