| SD Air Mount |
 |
| |
| Feature |
| |
|
 |
Air spring isolator with integral heavy wall construction. |
|
Continued support & isolation even with no air pressure. |
|
Deflection transfers shock to outer wall. |
|
Will not bottom out. |
|
Maintenance free. |
|
Extends machinery life. |
|
Combined resiliency and air prevents high static deflection. |
|
Wide load range available. |
| |
|
|
|
| Applicaions |
|
| |
|
|
Air compressors、CMM machinery、Forging |
| |
hammers、Industrial equipment、tools and |
| |
machinery、Sensitive measuring equipment |
|
|
 |

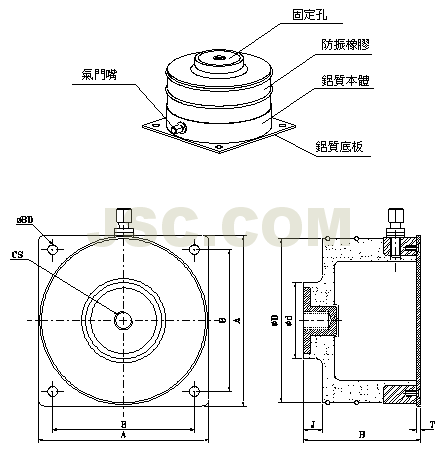

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimension (mm) |
Load Range(Kgs) |
Mounting
Bolt
CS |
| A |
B |
H |
D |
d |
J |
BD |
T |
Min |
Max |
| JSC-50-SD |
76 |
60 |
64 |
74 |
26 |
13 |
7 |
4 |
30 |
50 |
M10-40L |
| JSC-150-SD |
110 |
89 |
88 |
106 |
48 |
13 |
7 |
4 |
60 |
150 |
M12-50L |
| JSC-300-SD |
130 |
108 |
88 |
124 |
58 |
13 |
8 |
4 |
150 |
210 |
M12-50L |
|
| |
