| JG-S Seismic Mount |
 |
| |
| Feature |
| |
|
 |
Vibration Isolators and Seismic Restraints |
|
Ductile iron frame and housing. |
|
Low natural frequency. |
|
Hop dip galvanization finish. |
|
Non-skid Neoprene pad. |
|
Resilient housing guides to prevent metal-to-matel contact. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation. |
|
Weather resistant finish |
| |
|
|
|
| Applicaions |
 |
| |
|
|
Heavy engines |
|
Pumps、Compressors |
|
Chillers、Boilers |
|
Generators |
| |
|
| |
|
| |
|
|
|
 |
| |

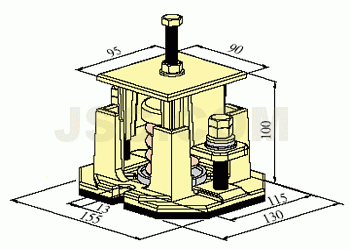

| Dimensions/Rated Capacity |
| |
| Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
Color Code |
| JG-020-S |
10~20 |
0.8 |
25 |
Yellow |
| JG-030-S |
20~30 |
1.2 |
25 |
Drak Green |
| JG-050-S |
30~50 |
2.0 |
25 |
Red |
| JG-070-S |
50~80 |
2.8 |
25 |
Blue |
| JG-090-S |
80~100 |
3.6 |
25 |
Brow |
| JG-120-S |
100~130 |
4.8 |
25 |
Gray |
| JG-150-S |
130~150 |
6.0 |
25 |
While |
| JG-180-S |
150~180 |
7.2 |
25 |
Orange |
| JG-250-S |
200~250 |
10.0 |
25 |
Green |
|
| |
